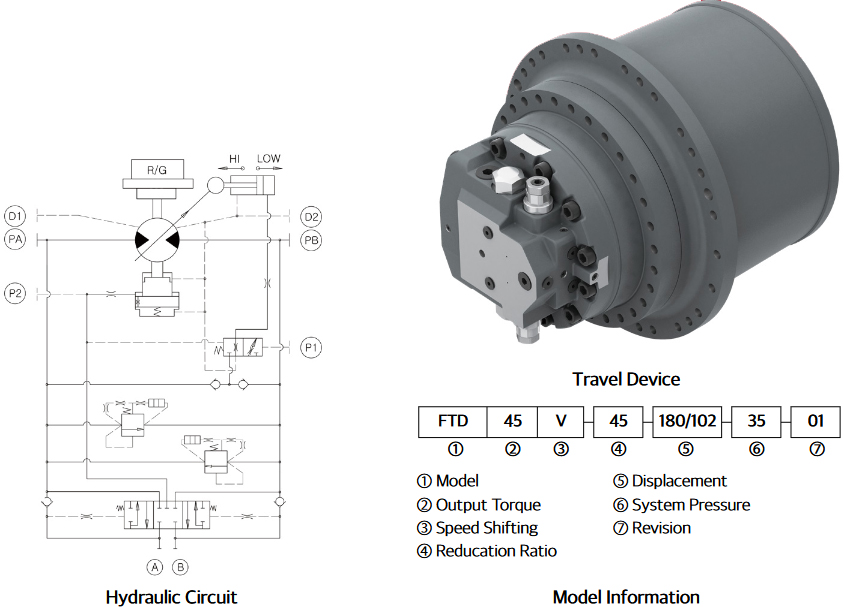

Specifications
- Compact & Robust design
- High performance & reliability
- Variable displacement (2 speed)
- Minimize shock with a built-in counter balance valve and shock-less relief valve
| Model | Application (ton) |
Device | Hydraulic Motor | |||||
|---|---|---|---|---|---|---|---|---|
| Theoretical Output Torque | Max. Out speed rpm |
Max. Pressure | Brake Torque (at Motor Shaft) |
|||||
| N·m | (Kgf·m) | MPa | (kgf/cm²) | N·m | (Kgf·m) | |||
| FDNB08 | 5~6 | 8,340 | 850 | 60 | 34.3 | 350 | 137 | 14 |
| FDNB12 | 7~8 | 12,560 | 1,280 | 60 | 34.3 | 350 | 137 | 14 |
| FTD26 | 13~16 | 25,830 | 2,630 | 60 | 34.3 | 350 | 265 | 27 |
| FTD45 | 18~22 | 44,520 | 4,540 | 58.5 54.2 |
34.3 | 350 | 621 | 63.3 |
| FTD48 | 22~26 | 47,580 | 4,850 | 54.2 | 34.3 | 350 | 621 | 63.3 |
| FTD70 | 28~34 | 70,000 | 7,140 | 50 | 35.8 | 365 | 1,128 | 115 |
| FTD80 | 36~42 | 79,570 | 8,110 | 43.5 | 35.8 | 365 | 1,128 | 115 |
| FTD100 | 46~52 | 100,100 | 10,210 | 36 | 35.8 | 365 | 1,128 | 115 |

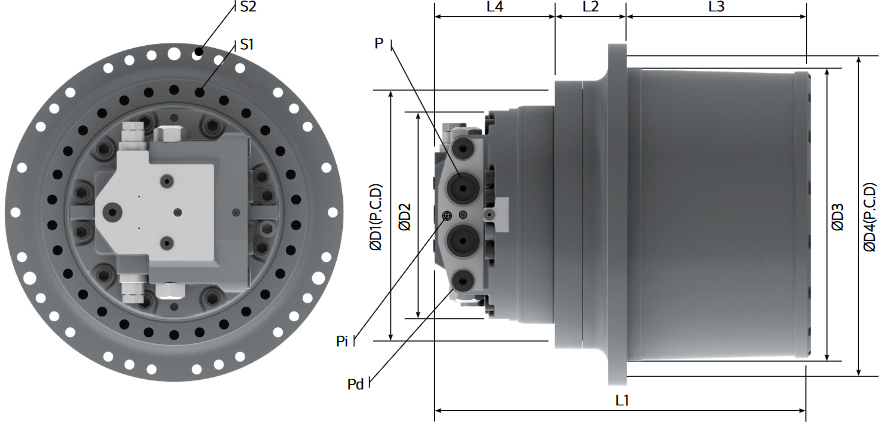

Dimensions
unit : mm
| Model | D1 | D2 | D3 | D4 | L1 | L2 | L3 | L4 | P | Pi | Pd | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FDNB08 | 244 | 210 | 250 | 282 | 336.5 | 68 | 147 | 121.5 | PF 1/2 | PF 1/4 | PF 3/8 | 12-M14 | 12-M14 |
| FDNB12 | 250 | 210 | 265 | 300 | 355.5 | 80 | 154 | 121.5 | PF 1/2 | PF 1/4 | PF 3/8 | 12-M14 | 12-M14 |
| FTD26 | 280 | 246 | 324 | 364 | 412.3 | 99.5 | 192 | 120.8 | PF 3/4 | PF 1/4 | PF 1/2 | 20-M16 | 15-M16 |
| FTD45 | 340 | 300 | 402 | 440 | 515.5 | 98.5 | 252 | 165 | PF1/SAE 1" | PF 1/4 | PF 1/2 | 30-M16 | 30-M16 |
| FTD48 | 340 | 300 | 402 | 440 | 515.5 | 98.5 | 252 | 165 | PF1/SAE 1" | PF 1/4 | PF 1/2 | 30-M16 | 30-M16 |
| FTD70 | 425 | 380 | 450 | 490 | 575 | 112 | 290 | 173 | SAE 1" | PF 1/4 | PF 1/2 | 26-M20 | 24-M20 |
| FTD80 | 425 | 380 | 450 | 490 | 575 | 112 | 290 | 173 | SAE 1" | PF 1/4 | PF 1/2 | 26-M20 | 24-M20 |
| FTD100 | 460 | 420 | 510 | 550 | 634 | 130 | 331 | 173 | SAE 1 1/4" | PF 1/4 | PF 1/2 | 24-M24 | 32-M20 |

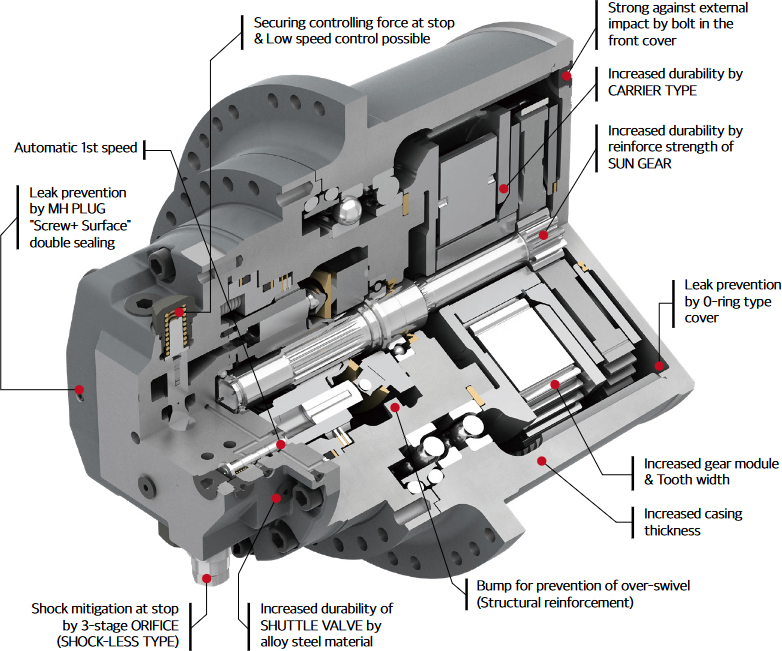

Structure and Application
| ton | FLUTEK | NABTESCO | DOOSAN | KAYABA | Application |
|---|---|---|---|---|---|
| 5~6 | GM06VA | DM06VD | MAG33V-550E | CATERPILLAR, DOOSAN, SANY, SDLG | |
| FDNB08 | - | TM07VC | - | Kobellco, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, FOTON | |
| 7~8 | FDNB12 | GM09VL/10VA | TM09/10VD | MAG44VP-800 | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking |
| 13~16 | FTD26 | GM18VL/21VA | TM22VC | MAG44VP-800 | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking, Sunward |
| 18~22 | FTD45 | GM35VA/VL | TM40VC/VD | MAG85VP-1800 | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking, Sunward |
| 22~26 | FTD48 | GM38VL/VB | TM40VC/VD | MAG170VP-3800 | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking, Sunward |
| 28~34 | FTD70 | GM60VA | TM60VC/VD | MAG230VP-6000 | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking, Sunward |
| 36~42 | FTD80 | GM70VA | TM70VC/VD | - | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking, Sunward |
| 46~52 | FTD100 | GM85VA | TM100VD | - | Kobellco, Sumitomo, JCB, DOOSAN, VOLVO, HYUNDAI, SANY, SDLG, XCMG, Liugong, FOTON, Lonking, Sunward |
