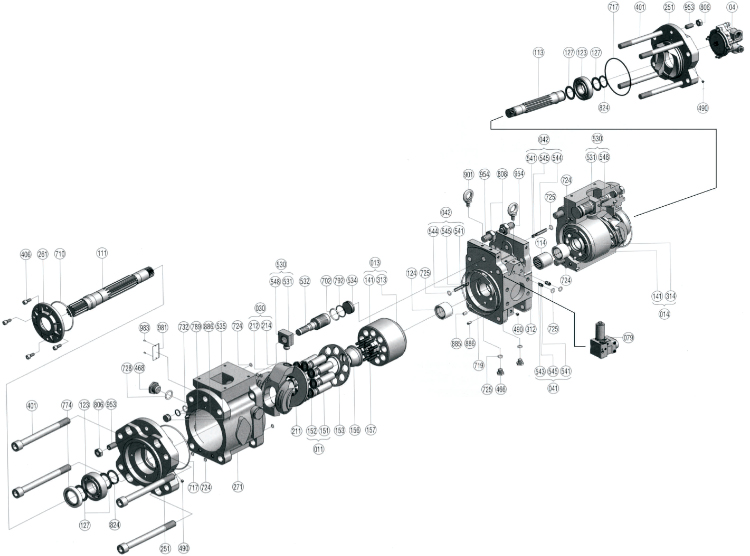

| No. | Part Name | Part Number | Q'ty/set | Remarks |
|---|---|---|---|---|
| 111 | DRIVE SHAFT(F) | 2933800774 | 1 | |
| DRIVE SHAFT(F) | 2933800982 | 1 | ⌀ 45 | |
| 113 | DRIVE SHAFT(R) | 2933800883 | 1 | |
| 114 | SPLINE COUPLING | 2953801763 | 1 | |
| 123 | ROLLER BEARING | PNUP308R1CS5K | 2 | |
| 124 | NEEDLE BEARING | PAJ503518 | 2 | |
| 127 | BEARING SPACER | 38800-127A | 4 | |
| 153 | SET PLATE | 2924110-0056 | 2 | |
| 156 | SPHERICAL BUSH | 2924610-0030 | 2 | |
| 157 | CYLINDER SPRING | 2953801769 | 18 |
| No. | Part Name | Part Number | Q'ty/set | Remarks |
|---|---|---|---|---|
| 211 | SHOE PLATE | 68710-00-211 | 2 | |
| 212 | SWASH PLATE | 2933800813 | 2 | |
| 214 | TILTING BUSH | P1R2025125 | 2 | |
| 251 | SUPPORT | 2923800809 | 2 | |
| 261 | SEAL COVER(F) | 2943800464 | 1 | |
| 271 | PUMP CASING | 2923250-0338 | 2 | |
| 312 | VALVE BLOCK | 2923801021 | 1 | |
| 325 | VALVE CASING | 2923230-0012 | 1 | |
| VALVE CASING | 2923230-0032 | 1 | ||
| VALVE CASING | 2933800944 | 1 | ||
| VALVE CASING | 2933800928 | 1 |
| No. | Part Name | Part Number | Q'ty/set | Remarks |
|---|---|---|---|---|
| 401 | SOCKET BOLT | 2953801767 | 8 | |
| 406 | SOCKET BOLT | 0SBM820 | 4 | |
| 466 | VP PLUG | 0VP14 | 2 | |
| 468 | VP PLUG | 0VP34 | 4 | |
| 490 | PLUG | PBP116-2403 | 21 | |
| 532 | SERVO PISTON | 2924490-0050 | 2 | |
| 534 | STOPPER(L) | 2925110-0318 | 2 | |
| 535 | STOPPER(S) | 2953801762 | 2 | |
| 702 | O-RING | 00RBG35W | 2 | |
| 710 | O-RING | 00RBG95 | 1 | |
| 717 | O-RING | 00RBG145 | 4 | |
| 724 | O-RING | 00RBP8 | 16 | |
| 725 | O-RING | 00RBP11 | 4 | |
| 728 | O-RING | 00RBP24 | 4 | |
| 732 | O-RING | 00RBP18W | 2 | |
| 774 | OIL SEAL | PTCV40DLV | 1 | |
| OIL SEAL | PTCV45DLV | 1 | ⌀ 45 | |
| 789 | BACK UP RING | 0T2BP18 | 2 | |
| 792 | BACK UP RING | 0T2BG35 | 2 |
| No. | Part Name | Part Number | Remarks | |
|---|---|---|---|---|
| 806 | NUT | 0RNM16 | 2 | |
| 808 | NUT | 0RNM20 | 2 | |
| 824 | SNAP RING | 0SR40 | 2 | |
| 885 | VALVE PLATE PIN | PJR812 | 2 | |
| 886 | SPRING PIN | 0SPV614 | 4 | |
| 901 | EYE BOLT | 0EBM10 | 2 | |
| 953 | SET SCREW | PSSSM1630 | 2 | |
| 954 | ADJUST SCREW | 2953801768 | 2 | |
| 981 | NAME PLATE | PNPF-2591 | 1 | |
| 983 | PIN | 0SK2548 | 2 | |
| 530 | TILTING PIN ASS'Y | 2953801989 | 2 | |
| 011 | PISTON ASS'Y | 3853802464 | 2ST | |
| 013 | CYLINDER ASS'Y(R) | 2921190-0324 | 1ST | |
| 014 | CYLINDER ASS'Y(L) | 2921190-0325 | 1ST | |
| 041 | CHECK VALVE 1 ASS'Y | 2953802048 | 2 | |
| 042 | CHECK VALVE 2 ASS'Y | 2953802049 | 2 | |
| 04 | GEAR PUMP | * | 1ST | |
| 08 | REGULATOR | * | 2ST | |
| 079 | EPPRVALVE ASS'Y | * | 1ST |
