Specifications
- Variable displacement
- Superior operability and feeling
- Built-in shockless relief valves
- Anti-reaction valves - Built-in parking brake and time delay valve
| TYPE | M5X80 | M5X130 | M5X180 | M5X250 |
|---|---|---|---|---|
| Displacement (cc/rev) | 79 | 129.2 | 180.1 | 250.1 |
| Rated Pressure (MPa) | 33 | 32.4 | 32.4 | 33 |
| Max. Pressure (MPa) | 40 | 39.2 | 39.2 | 40 |
| Max. Speed (min-1) | 2,200 | 1,850 | 1,680 | 1,520 |
| Max. torque (N·m) | 415 | 666 | 929 | 1,313 |
| Weight (kg) | 38 | 47 | 61 | 100 |
| Application (ton) | 12~18 | 22~30 | 34~52 | 70~ |

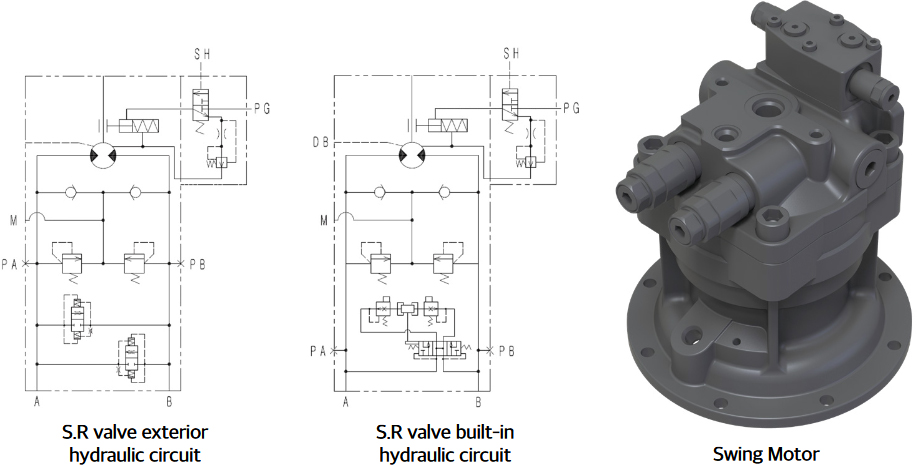

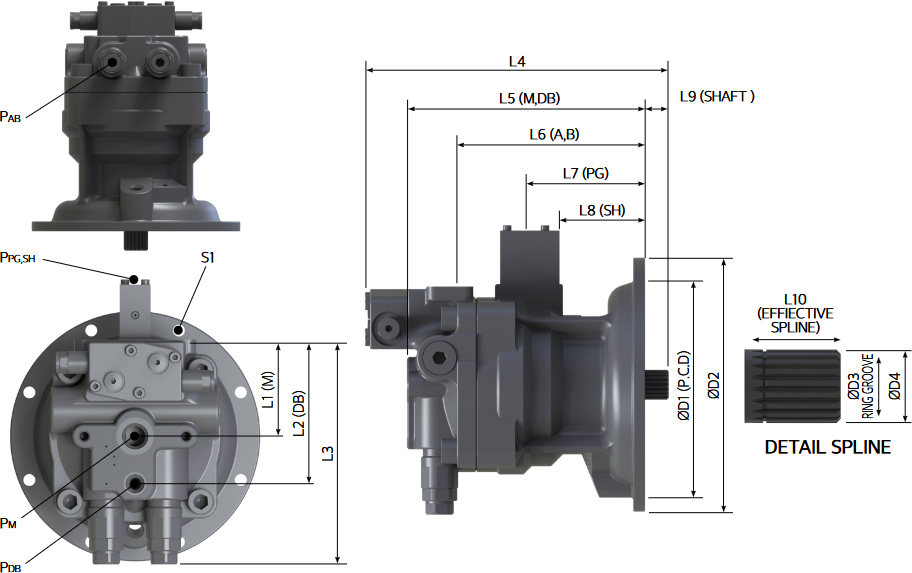

Dimensions
| Model | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | D1 | D2 | |
| M5X80 | 104.5 | 160.5 | 260.5 | 276 | 256 | 209 | 129.5 | 88.5 | 17.1 | Ø260 | Ø288 |
| M5X130 | 105.5 | 169.5 | 264.5 | 354 | 268.5 | 219 | 134.5 | 93.5 | 19.5 | Ø274 | Ø295 |
| M5X180 | 108.5 | 194.5 | 288.5 | 372.5 | 308 | 258 | 167 | 126 | 23.9 | Ø381 | Ø424 |
| M5X250 | 131 | 225 | 316 | 432 | 303.5 | 246.5 | 148.5 | 107.5 | 90 | Ø280 | Ø245 |
| Model | Dimensions | Shaft spline | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S1 | PAB | PM | PD | PSH,PG | L10 | D3 | D4 | TEETH | MODULE | ANGLE | |
| M5X80 | 10-Ø13 | SAE1/2" | SAE3/4" | SAE1/2" | SAE3/8" | 25 | Ø28.6 | Ø29.6 | 16 | 1.667 | 20 |
| M5X130 | 8-Ø13 | SAE1" | SAE1" | SAE1/2" | SAE3/8" | 36.4 | Ø33 | Ø34.7 | 19 | 1.667 | 20 |
| M5X180 | 20-Ø17 | SAE1" | SAE1" | SAE5/8" | SAE3/8" | 32.8 | Ø42.5 | Ø44.5 | 16 | 2.5 | 20 |
| M5X250 | 4-Ø18 | Ø25 | SAE1 1/4" | SAE3/4" | SAE3/8" | 40 | Ø47 | Ø49.5 | 18 | 2.5 | 20 |

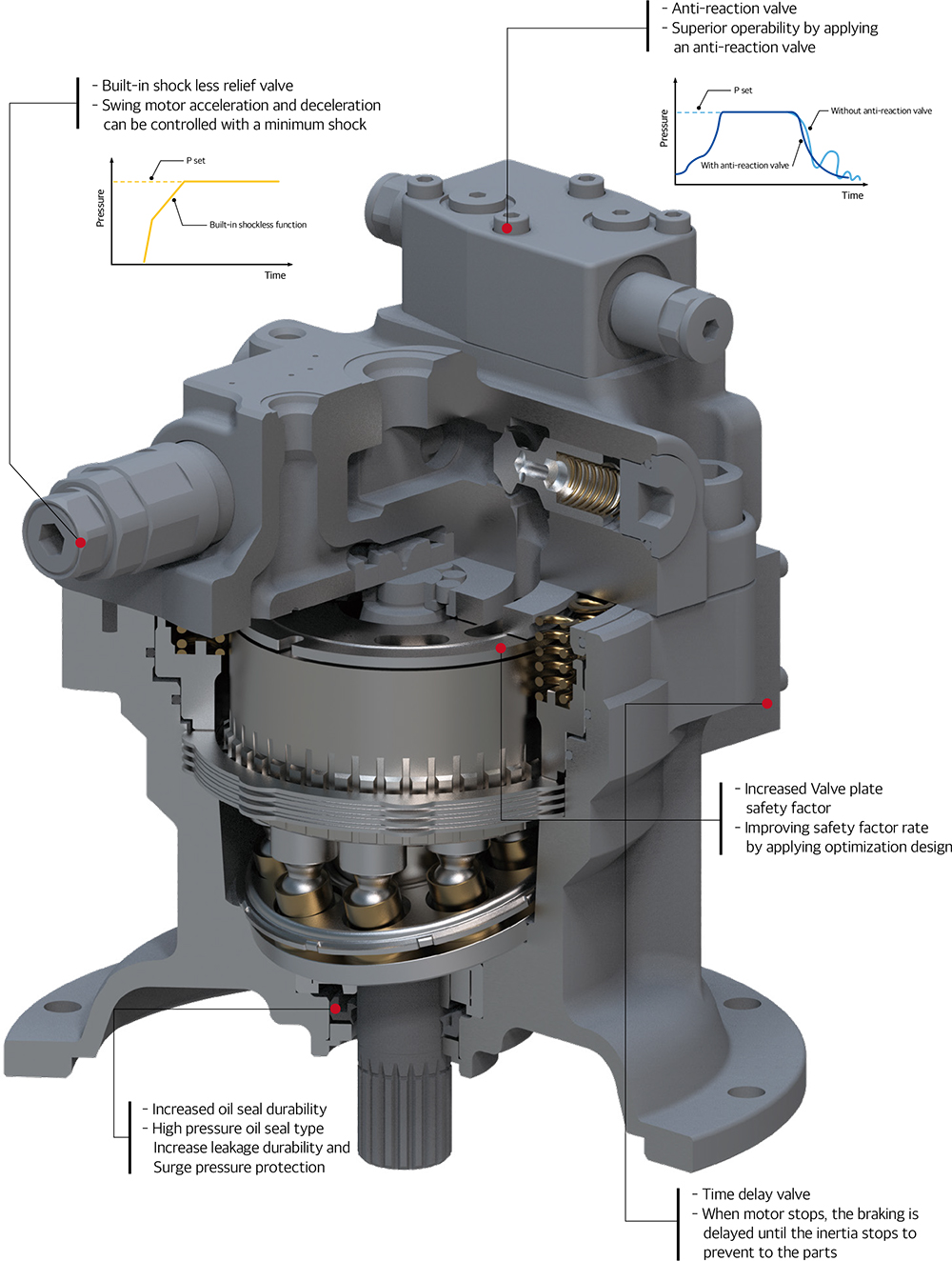

Structure and Features
