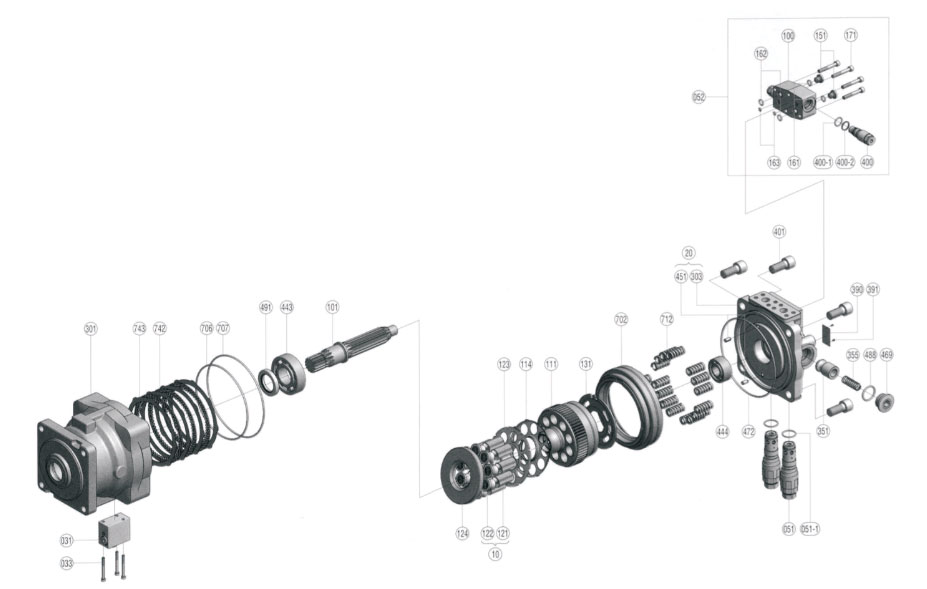

| No. | Part Name | Part Number | Q'ty/set | Remarks |
|---|---|---|---|---|
| 10 | PISTON ASS'Y | 37061123-2073 | 1ST | |
| 303 | VALVE CASING H2 | 3723230-0225 | 1 | * |
| VALVE CASING H4 | 3723230-0435 | 1 | * | |
| VALVE CASING H0 | 3723230-0184 | 1 | * | |
| VALVE CASING H1 | 3723230-0178 | 1 | * | |
| 451 | SPRING PIN | 0SPV614 | 2 | |
| 101 | DRIVE SHAFT | 3724250-0367 | 1 | |
| 111 | CYLINDER BLOCK | 3724370-0914 | 1 | |
| 114 | SPRING PLATE | 3703330-0017 | 1 | |
| 123 | SET PLATE | 3724110-0044 | 1 | |
| 124 | SHOE PLATE | 3724670-0048 | 1 | |
| 131 | VALVE PALTE A | 3724710-0946 | 1 | |
| 301 | CASING E1 | 3723270-0620 | 1 | * |
| CASING E2 | 3723270-0621 | 1 | * | |
| 351 | PLUNGER H | 3753700549 | 2 | |
| 355 | SPRING H | 3753700548 | 2 | |
| 390 | NAME PLATE | PNPF-2591 | 1 | |
| 391 | PIN (NAME PLATE 用) | 0SK2548 | 2 | |
| 401 | HEX SOCKET BOLT | 0SBM2045 | 4 | |
| 443 | ROLLER BEARING | PNJ307EVV | 1 |
※ 메인 펌프(Main Pump) 모델명 또는 굴삭기(Excavator) 모델명을 확인하신 후 문의해 주시기 바랍니다.
| No. | Part Name | Part Number | Q'ty/set | Remarks |
|---|---|---|---|---|
| 444 | ROLLER BEARING | PNJ2304EHT | 1 | |
| 469 | ROMH PLUG | 0R0MH30 | 2 | |
| 472 | O-RING | 00RWG40W | 1 | |
| 488 | O-RING | 00RBP28 | 2 | |
| 491 | OIL SEAL | PTCZ35MV | 1 | |
| 702 | BRAKE PISTON | 3724510-0011 | 1 | |
| 706 | O-RING | 00RWG38 | 1 | |
| 707 | O-RING | 00RWG41 | 1 | |
| 712 | BRAKE SPRING | 3703340-0660 | 20 | |
| 742 | FRICTION PLATE | 3724730-0008 | 3 | |
| 743 | SEPARATOR PLATE | 3724690-0008 | 4 | |
| 031 | TIME DELAY VALVE | 37024900336P | 1ST | * |
| TIME DELAY VALVE | 3702490-1721P | 1ST | * | |
| 033 | HEX SOCKET BOLT | 0SBM670 | 3 | |
| 051 | RELIEF VALVE | V2CSG2 | 2ST | * |
| RELIEF VALVE | V2CSJ | 2ST | * | |
| RELIEF VALVE | V2CW | 2ST | * | |
| 052 | S,R,VALVE ASS'Y | V9409216208 | 1ST | * |
| S,R,VALVE ASS'Y | V0603298185 | 1ST | * | |
| S,R,VALVE ASS'Y | V0603248163 | 1ST | * | |
| S,R,VALVE ASS'Y | 50070627-4382 | 1ST | * |
